Congratulations Tom Ashmore at Ashmore Plumbing for winning May’s Install of the Month Competition. Tom wins a £100 Amazon Voucher for submitting his install photos - it’s that simple!

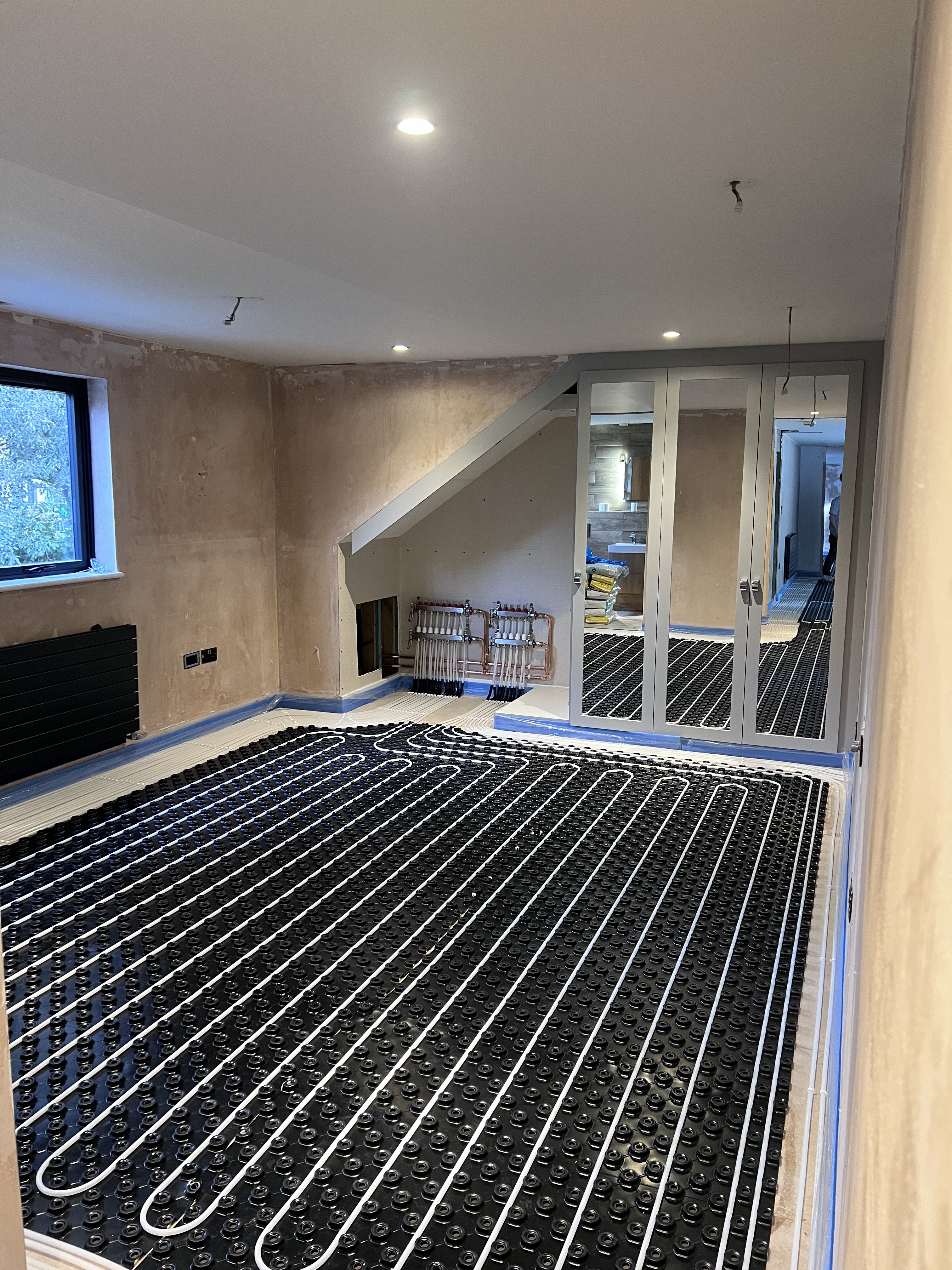

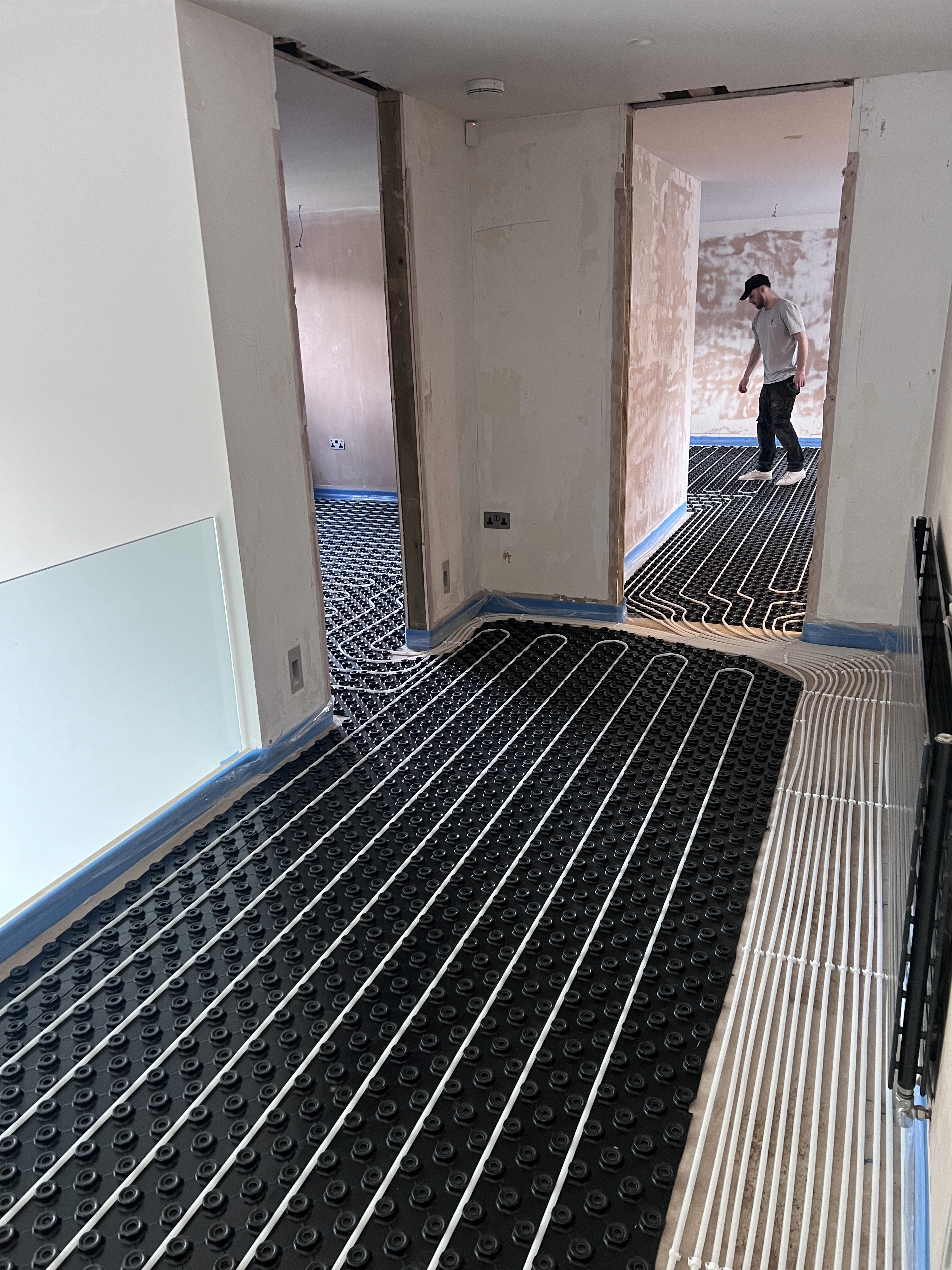

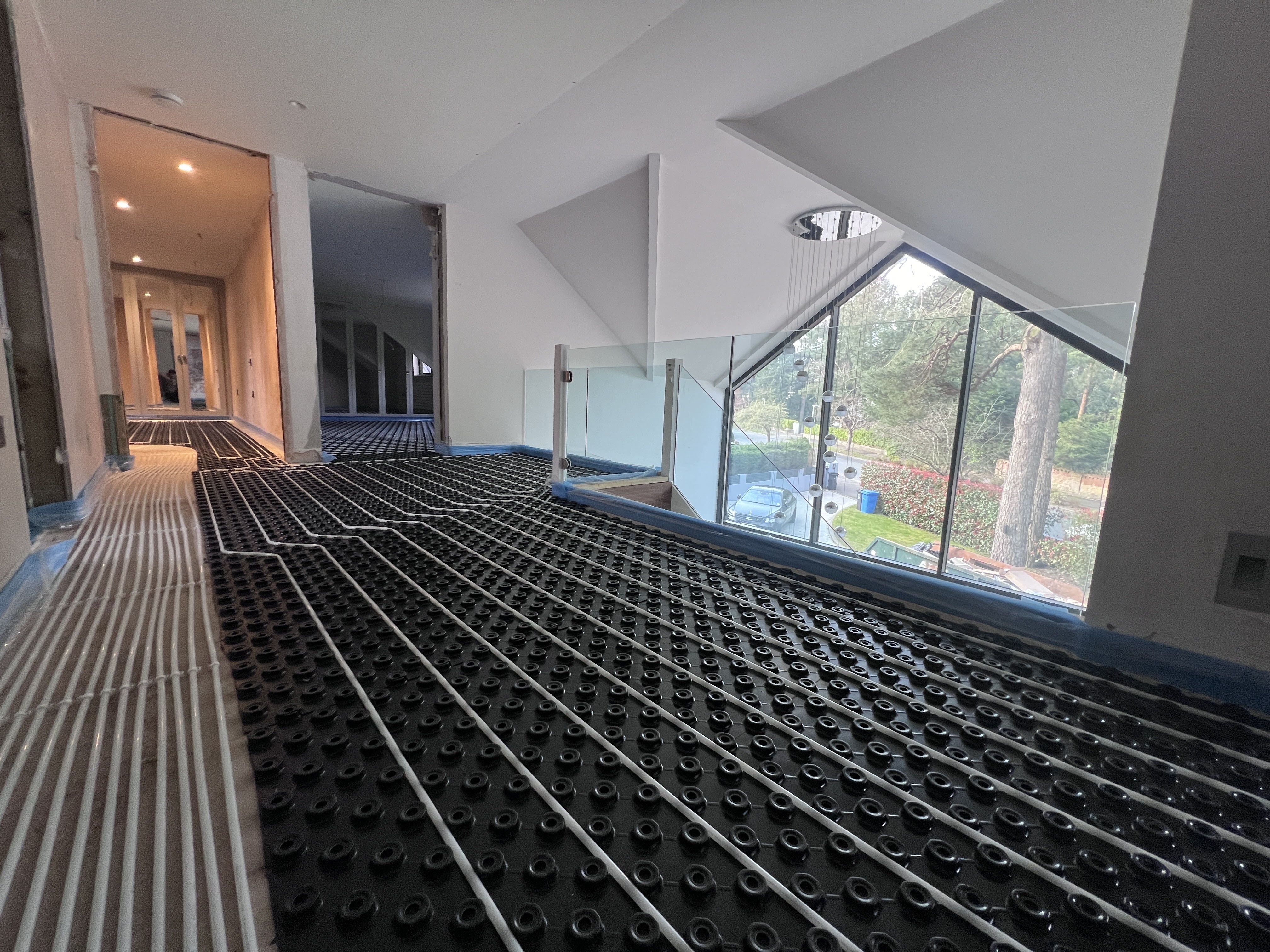

This was a complex project where not only did the house require a complete wet underfloor heating solution for the first floor, but also the existing manifold on the ground floor needed to be moved to a new location. Speed was of the essence too as the whole project was completed within a week. The solution we used was the AD-Ultraslim Max, where very low profile, self-adhesive castellated panels (just 15mm) were fitted with 12mm pipe, before covered in an 18mm self-levelling compound.

Due to the size of the property, a larger pump was used, with a specialist blending valve instead of the standard control packs that are fitted to the manifolds.

Project Details:

• Underfloor heating solution used was AD-UltraSlim Max
• Self-Levelling Compound was SMS30
• Specialist Primer was Isolbau Siliceous-Polymer Primer
• Thermostats were NeoAir Wireless thermostats from Heatmiser
