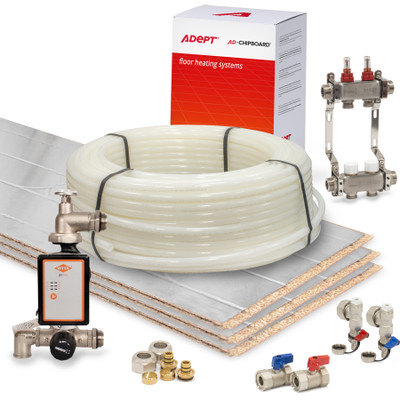

Adept AD-CHIPBOARD Foiled Grooved Water Underfloor Heating Kits

Adept AD-CHIPBOARD Foiled Grooved Water Underfloor Heating Kits

Please contact us for availability.

Product Code:

Adept AD-CHIPBOARD Water Underfloor Heating Kits

Adept AD-CHIPBOARD Underfloor Heating is the Premier Heating Kit, including an A Rated Pump and 12mm PERT Pipe.

Adept AD-CHIPBOARD  Heating Kits are all designed for a single zone, however can be adjusted with the use of any Adept or Heatmiser controls from within our store. Each Kit is designed to use 150mm centres using a 22mm Foiled Grooved Chipboard panel. The Kits are designed to output 100w/m2.

Finished floors, such as tiles can be installed directly on AD-CHIPBOARD panels without the need for over-boarding.


Adept AD-CHIPBOARD is an underfloor heating solution that utilises chipboard panels with pre-routed grooves, allowing you to easily install underfloor heating pipe quickly and efficiently.

Each AD-CHIPBOARD panel measures 2400 x 600 x 22mm,are P5 moisture resistant and use 12mm underfloor heating pipe, which is pierced through the foil upon installation into the pipe channels in the chipboard.

The tongue and grooved edges of AD-CHIPBOARD panels are glued to adjoining panels, as well as to the joists, before installation. In addition, the panels are screwed to the joists. This is followed by the installation of the 12mm underfloor heating pipe.

You can lay carpet, laminate, or timber straight over the 6mm+ of plywood. If you are laying tiles or vinyl, make sure the sub deck is suitable for the finished product by following the manufacturer's instructions. Many options are available on the market, and some will require either a thicker ply, a thin tile backer/cement board or even a skim layer over the ply.

A minimum of 6mm flooring grade ply layer bonded and mechanically fixed to the chipboard. As an alternative, the floor finish can be bonded directly to the chipboard if it is at least as strong as the 6mm of ply (e.g. 14mm engineered wood). By using 6mm plywood, you create a sacrificial deck, so if the floor finish is to be removed and replaced later, you won't damage the underfloor heating.

Joists at max. 600mm centres with insulation in the inter-joist space



The Kits Contents:

Kit Size (m2) 12 21 25 33 39 51 63 75 84 90 97
Single Loop Control Pack untitled-1.png
Manifold & Control Pack   untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png
Manifold Ports    2 2 3 4 5 6 7 8 8 9
Pipe Length (m) 85 140 170 225 280 365 450 535  590 620 675
Pipe Connectors untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png untitled-1.png
Grooved Chipboard Panels  10 17 20 26 31 40 50 59 66 71 76



  • Vinyl & Carpet floor finishes will need over-boarding with minimum 6mm plywood before you install the floor finish. You can also use self levelling compound with 5mm latex.


Suitable Floor Constructions:
Solid / Screed
Suitable Floor Constructions:
Beam & Block
Suitable Floor Constructions:
Suspended Timber
Suitable Floor Constructions:
Batten Floor
Suitable Floor Finishes:
Suitable Floor Finishes:
Suitable Floor Finishes:
Suitable Floor Finishes:

Standard Delivery - 3 to 5 Working Days
Express Delivery - 1 to 2 Working Days

All our orders are dispatched via Royal Mail, APC Overnight Courier, Fedex or Fortec Pallet Network.
All consignments will require a signature so please ensure that the delivery address will have someone available to sign for the goods.

Due to additional charges imposed by our couriers for deliveries to the Scottish Highlands, offshore islands and Northern Ireland, a surcharge may be levied to cover carriage to these areas (listed below). We advise customers to contact us for a final postage fee before finalising orders.

AB31 to AB38, AB41 to AB45, AB 51 to AB56, BT, FK19 to FK 21, HS1 to HS9, IV1 to IV28, IV30 to IV32, IV36, IV40 to IV49, IV51 to IV56, KA27 to KA28, KW1 to KW3, KW5 to KW17, PA20 to PA49, PA60 to PA78, PH1, PH5 to PH10, PH15 to PH26, PH30 to PH44, TR, GY & E1 to ZE3.

Manual Thermostat

The Adept Manual Dial Thermostat is an easy to use simple On/Off switch and an easy to adjust dial to choose your optimum temperature.


  • Easy to Use Dial Thermostat for Easy Temperature Control
  • No complicated Setup Required
  • On/Off Switch

IP Rating: IP20

Max Load: 16 amps

Supply Voltage: 230v

Programmable Thermostat

Programmable Thermostat that is ultra compact and provides precise control and is easily configured to control the temperature and timings for most Heating systems, including Electric or Wet Underfloor Heating Systems.


  • Digital 7 Day Programmable or Non Programmable Thermostat
  • Up to 6 Heating Periods Per Day
  • Built In Sensor and Floor Sensor Included

IP Rating: IP20

Max Load: 16 amps

Supply Voltage: 230v

Intuitive Thermostat

The ELEKTRA MCD5 temperature controller features no knobs or dials, thus becoming optically “friendlier”, and nicely fitting in with the walls. As in previous versions of the ELEKTRA MCD, the simplicity user same remains, but this time with a touchscreen.The controller “learns” the thermal inertia characteristics of the floor, and after some days already knows when to switch the heating on in order to achieve thermal conditions required by users at a precisely set time.


  • 6 Event Programming Settings
  • Built In Sensor and Floor Sensor Included
  • Calender Settings for Planning Weekend Outings or Holdays

IP Rating: 21

Max Load 16 amps

WiFi Thermostat

The Wifi Thermostat is a smartphone controllable stat perfect for use with underfloor heating systems or for use with electric heating devices or valve actuators. Wifi Thermostats allow you to use the included free app from your smartphone (available for both IOS and Android devices) to control the temperature of your heating device. The WiFi Thermostat gives you accurate and precise control anywhere in the home and is a premium choice for any household.


  • Smartphone Controllable via App
  • Built In Sensor and Floor Sensor Included
  • Control via Amazon Echo and Google Home Devices

IP Rating: 21

Max Load 16 amps

The WiFi Thermostats only work on 2.4GHz WiFi
