Water underfloor heating advice
Do I Need a Manifold for Underfloor Heating?
Yes, for most wet underfloor heating systems.
A manifold is normally required when the system has two or more pipe circuits, serves several rooms or needs independently controlled heating zones. A small room should not be assessed by floor area alone.
The short answer
When Is a Manifold Required?
For most Uheat water underfloor heating projects, the manifold forms the central distribution point for the floor circuits. Purpose-designed single-circuit arrangements may use a different control method, but there is no universal room-size limit that decides whether a manifold is required.
| Installation | Is a manifold normally required? |
|---|---|
| One room with two or more pipe circuits | Yes |
| Several rooms or heating zones | Yes |
| A whole floor or complete property | Yes |
| Independent room-temperature control | Normally, with thermostats and actuators |
| One purpose-designed pipe circuit | Depends on the complete system design |
| Electric underfloor heating | No—manifolds are for water systems |
Several rooms or heating zones
YesA whole floor or complete property
YesIndependent room-temperature control
Normally, with thermostats and actuatorsOne purpose-designed pipe circuit
Depends on the complete system designElectric underfloor heating
No—manifolds are for water systemsUnderstanding the equipment

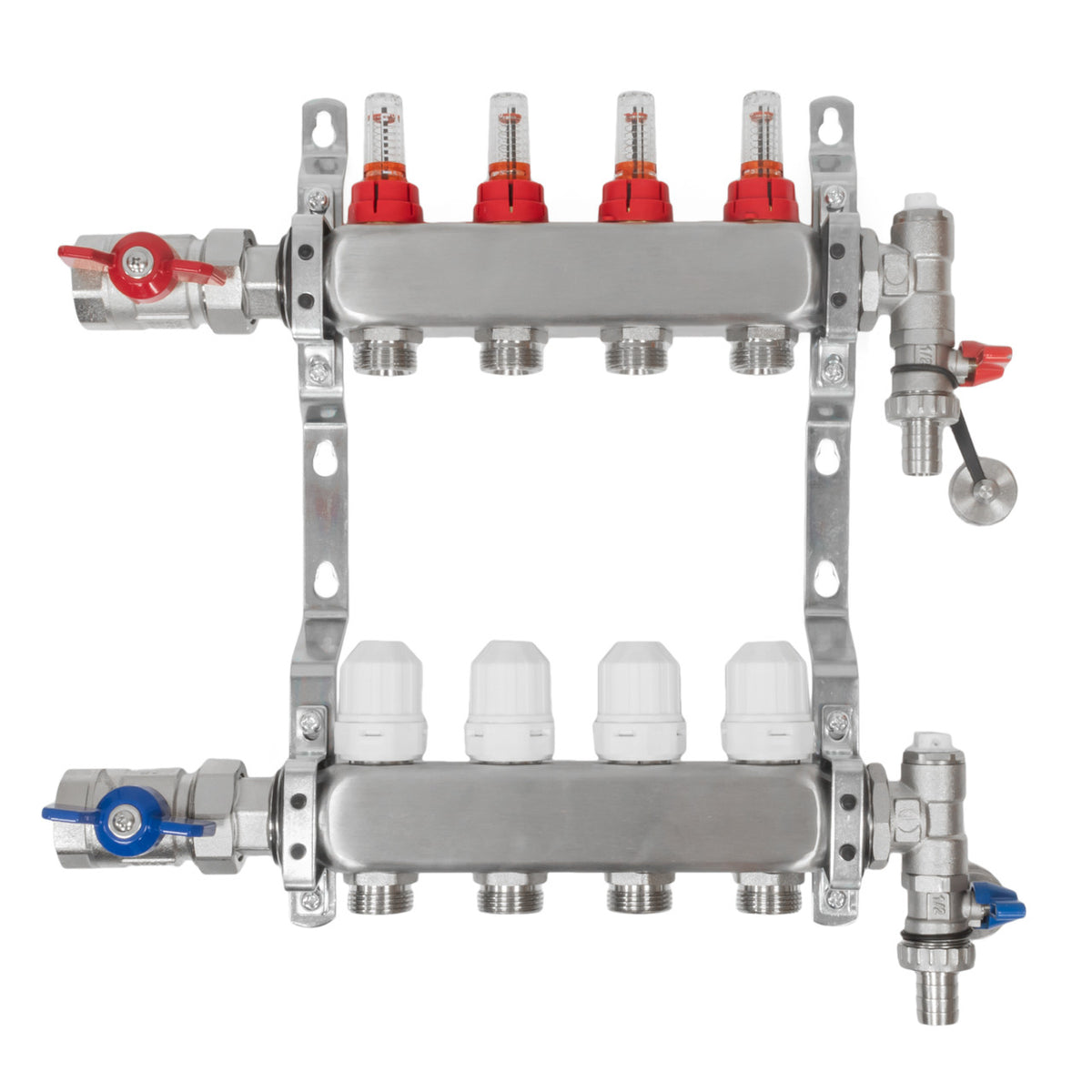

What Is an Underfloor Heating Manifold?
An underfloor heating manifold is the connection point between the primary heating system and the pipes installed within the floor.
Each continuous pipe circuit connects to one manifold position using one flow and one return connection. Exact components and positions vary between models, so installation and commissioning must follow the selected equipment instructions.
Flow header
Distributes heated water to each floor circuit.
Return header
Collects water after it has travelled through the circuits.
Distribution and balancing
What Does the Manifold Do?
The manifold is the central distribution and balancing point. It also supports circuit isolation and room zoning when used with the correct controls.
The manifold alone does not provide independent room-temperature control.
Distributes Water
Water entering the manifold is divided between the connected circuits. Each circuit carries heat to its assigned floor area before returning.
Balances the System
Flow meters let the installer adjust circuits with different lengths and requirements to their calculated design flow rates.
Isolates Circuits
Individual circuits can be closed for testing, filling, maintenance or control without necessarily shutting down the complete system.
Supports Heating Zones
Compatible actuators, thermostats and a wiring centre can open the circuits assigned to a room when it calls for heat.
Separate system components
Is the Manifold the Same as a Pump or Mixing Valve?
No. These components are often assembled together, which is why the complete unit may be called a manifold or control unit, but each performs a separate function and does not have one universal specification.
Manifold
Distributes, collects and balances water between the underfloor heating circuits.
Circulating Pump
Provides the required water circulation where a dedicated underfloor heating pump is needed.
Mixing or Temperature Control
Regulates water entering the circuits when the heat source supplies a higher temperature than the floor design requires.
Actuators & Thermostats
Open and close the relevant circuits in response to room-temperature demand.
Heat-source requirements
Does Every Manifold Need a Pump and Mixing Valve?
Not necessarily. A pump or mixing valve should not be added or omitted simply because a particular heat source is being used. The complete hydraulic system must be assessed.
Boiler systems
A boiler commonly supplies water at a higher temperature than the underfloor heating circuits require. The installation may therefore need a mixing control and dedicated circulating pump.
Heat-pump systems
A heat pump or another low-temperature heat source may supply the manifold at the required floor-heating design temperature without a separate mixing valve. An additional pump or hydraulic arrangement may still be required.
Manifold sizing
How Many Manifold Ports Do I Need?
The required manifold size is determined by the number of pipe circuits—not simply by the number of rooms.
One room may need several circuits if its heated area is too large for one loop. Conversely, several small areas may share a heating zone while still using separate circuits.
Planning the position
Where Should the Manifold Be Installed?
The manifold should be positioned as centrally as practical to the areas it serves. This can reduce unheated flow and return pipework and make circuit lengths easier to design and balance.
Allow space for all connections, controls and any pump or mixing equipment. Avoid permanently enclosing it behind furniture or finishes, and consider pump noise near sensitive rooms.
Suitable locations may include
- Utility rooms
- Airing cupboards
- Under-stairs cupboards
- Dedicated manifold cabinets
- Accessible service cupboards
Keep access for
- Filling and venting
- Pressure testing
- Flow balancing
- Actuator replacement
- Inspection and future maintenance
System design
What Must Be Confirmed Before Selecting a Manifold?
The designer should establish all eleven items before the manifold and controls are selected.
- 1Room-by-room heat loss
- 2Usable heated floor area
- 3Pipe size and spacing
- 4Number and length of circuits
- 5Required flow rates
- 6Proposed manifold location
- 7Heat-source flow temperature
- 8Pump and mixing-control requirements
- 9Heating zones and thermostats
- 10Actuator and wiring requirements
- 11Available installation and servicing space
Common questions
Frequently Asked Questions
Clear answers about manifold ports, controls, locations and different types of underfloor heating.
Does every water underfloor heating system need a manifold?
Most do, particularly systems with multiple pipe circuits, several rooms or independent zones. A purpose-designed single-circuit installation may use an alternative arrangement, but this must be confirmed through the system design.
Does electric underfloor heating need a manifold?
No. Electric underfloor heating uses heating cables or mats connected to electrical controls. A hydraulic manifold is only used with water-based systems.
Does each room need its own manifold port?
Not necessarily. Each pipe circuit needs its own manifold position. A small room may use one circuit, while a larger room may need two or more. Multiple circuits can also be assigned to the same room thermostat.
Does the manifold control the water temperature?
Not by itself. A separate mixing or temperature-control component may be required when the heat source supplies water at a higher temperature than the floor circuits need.
Does a manifold provide independent room control?
The manifold makes zoned control possible, but it requires compatible actuators, thermostats and electrical controls. A manifold fitted without these components does not independently regulate each room.
Can I install the manifold inside a cupboard?
Yes, provided there is sufficient space for the complete assembly, pipe connections and future servicing. The manifold must remain accessible and should not be permanently concealed.
How do I know what size manifold to use?
The required number of ports is determined by the number of designed pipe circuits. This can only be established after considering the heated area, pipe spacing, circuit lengths and heat loss.
Can one manifold supply both upstairs and downstairs?
Potentially, but it depends on the pipe routes, circuit lengths and manifold position. Larger properties are often easier to design, balance and maintain using separate manifolds for different floors or areas.
