UltraFix is fast and easy to install, reducing install time and costs. It has high efficiency because it utilises the thermal mass of the screed to provide maximum output.

Suitable Floor Constructions

  • Solid / Screed
  • Beam & Block

Suitable Floor Finishes

  • Tiles
  • Wood
  • Vinyl
  • Carpet

Notes

  • Insulation should be Rigid PIR.
  • Some insulation / screen combinations require a vapour barrier to be installed directly on the insulation before you install the pipe and lay the screed.
  • To comply with building regulations, you should use a minimum 65mm sand / cement or 50mm pumped screed.

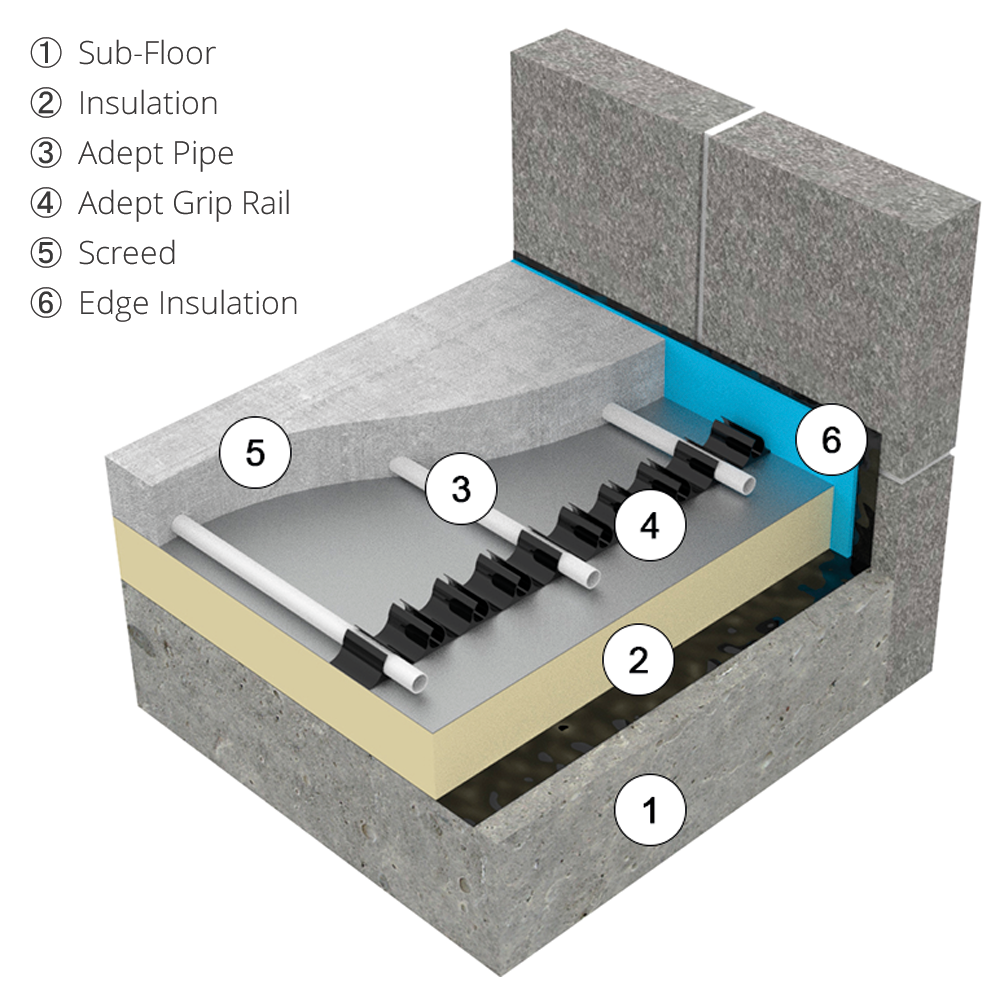

UltraFix Rail

Tools Required

  • Pipe Cutter - Cut pipe to length
  • Pipe Reamer / Beveller - Prepare pipe for connection
  • Power Drill - Drill fixings for manifold
  • Spanner - Tighten pipe fixings
  • Hydraulic test Pump - Pressure test pipe loops

Optional Tools

  • Tacker Gun
